UL STANDARD
imc (INTERMEDIATE METAL CONDUIT)
IMC (INTERMEDIATE METAL CONDUIT)

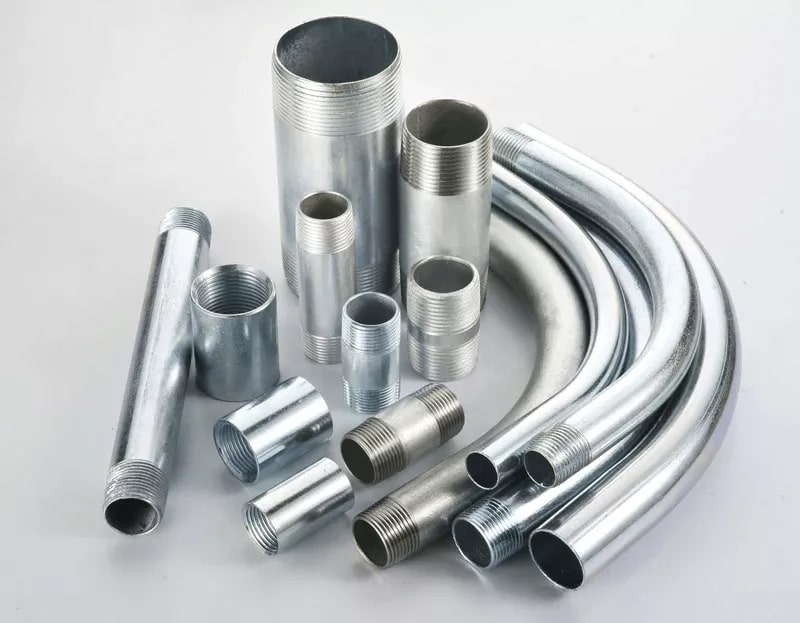

Barton IMC is a high strength, threaded ductile steel conduit, hot dip galvanised after manufacture for maximum resistance against corrosion.
Barton IMC conduit has NPT threaded fittings.
Barton IMC conduit offers excellent resistance to extreme temperatures and corrosive environments.
Sizes: Nominal trade sizes are from ½” to 4”
Length: IMC conduit is produced in in 3.05m (10 ft) traditional standard lengths including coupler.
Features:
- High strength threaded ductile steel conduit.
- Manufactured from galvanised high grade steel.
- Supplied in 3.05m (10 ft) lengths with coupler/connectors.
- American National Standard Institute ANSI C80.3.
- Underwriters Laboratory UL1242.
- IMC - Intermediate Metal Conduit.
- Excellent resistance to extreme temperatures and environments.
- Does not burn or produce harmful gases.
- Smooth interior for easy wire pulling.
- Connected using EMT/IMC fittings.
IMC (Intermediate Metal Conduit)
| BARTON Intermediate Metal Conduit (Dimensions) | |||||||
|---|---|---|---|---|---|---|---|
|
Nominal Trade Size |
Part Number |
Length |
Nominal Outside Diameter |
Nominal Wall Thickness |
|||
|
Inch |
MM |
Inch |
MM |
Inch |
MM |
||
|
1/2 |
16 |
BIMC050 |
3.05m (10 ft) |
0.810 |
20.57 |
0.070 |
1.79 |
|
3/4 |
21 |
BIMC075 |
1.024 |
26.01
|
0.070
|
1.90
|
|
|
1 |
27 |
BIMC100 |
1.285 |
32.64 |
0.075 |
2.16 |
|
|
11/4 |
35 |
BIMC125 |
1.630 |
41.40 |
0.085 |
2.16 |
|
|
11/2 |
41 |
BIMC150 |
1.875 |
47.62 |
0.085 |
2.29 |
|
|
2 |
53 |
BIMC200 |
2.352 |
59.74 |
0.090 |
2.41 |
|
|
21/2 |
63 |
BIMC150 |
2.847 |
72.31 |
0.095 |
3.56 |
|
|
3 |
78 |
BIMC300 |
3.466 |
88.04 |
0.140 |
3.56 |
|
|
31/2 |
91 |
BIMC350 |
3.961 |
101.12 |
0.140 |
3.56 |
|
|
4 |
103 |
BIMC400 |
4.456 |
113.69 |
0.140 |
3.56 |
|
Large diameters are available on request.
