UL STANDARD
FLEXIBLE CONDUIT SYSTEM

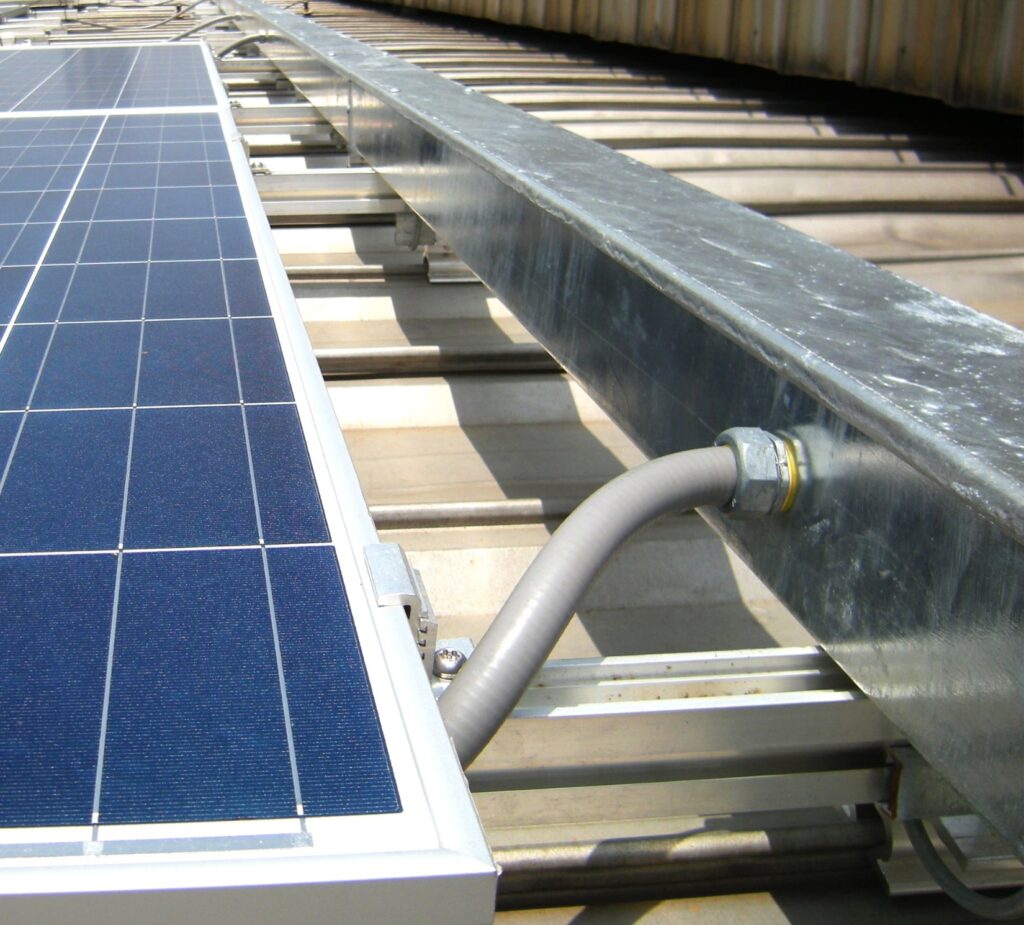

Barton UL flexible steel conduit systems protect power, lighting, and data cables within electrical installations from vibrations, movements, corrosion, and damage. The galvanised steel core is manufactured in accordance with UL 1 or UL 360 standards, resulting in a smooth bore that facilitates cable pulling.

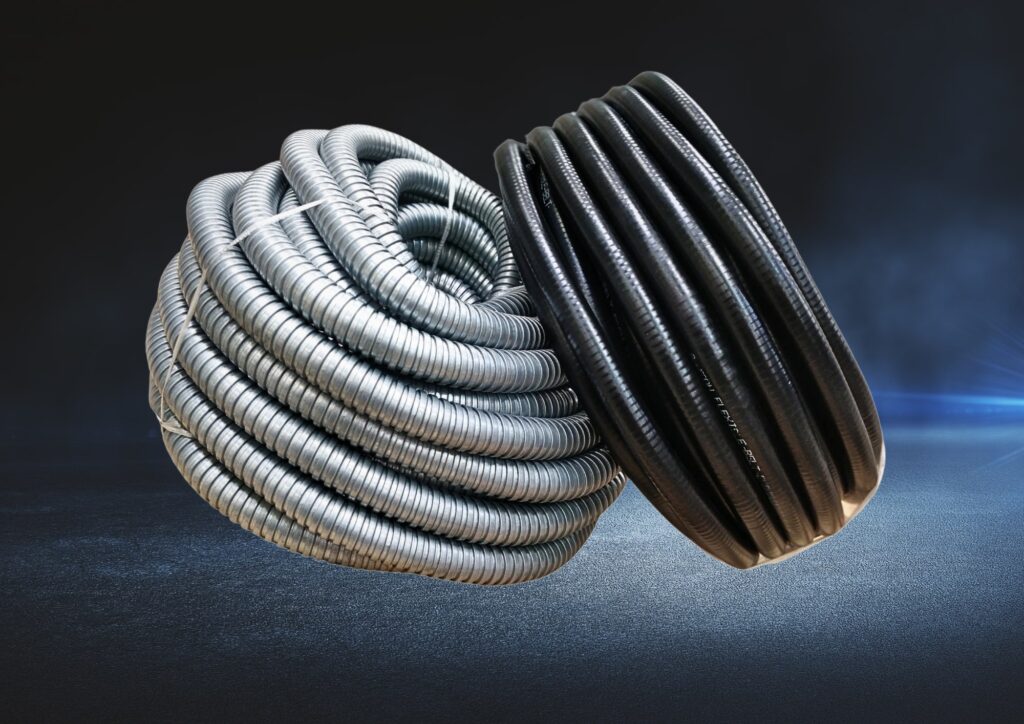

These systems are available in steel or with a PVC or liquid-tight covering. Barton flexible steel conduit systems are designed to perform well in harsh environments, such as extreme temperatures, humidity, salinity, dust, and UV exposure

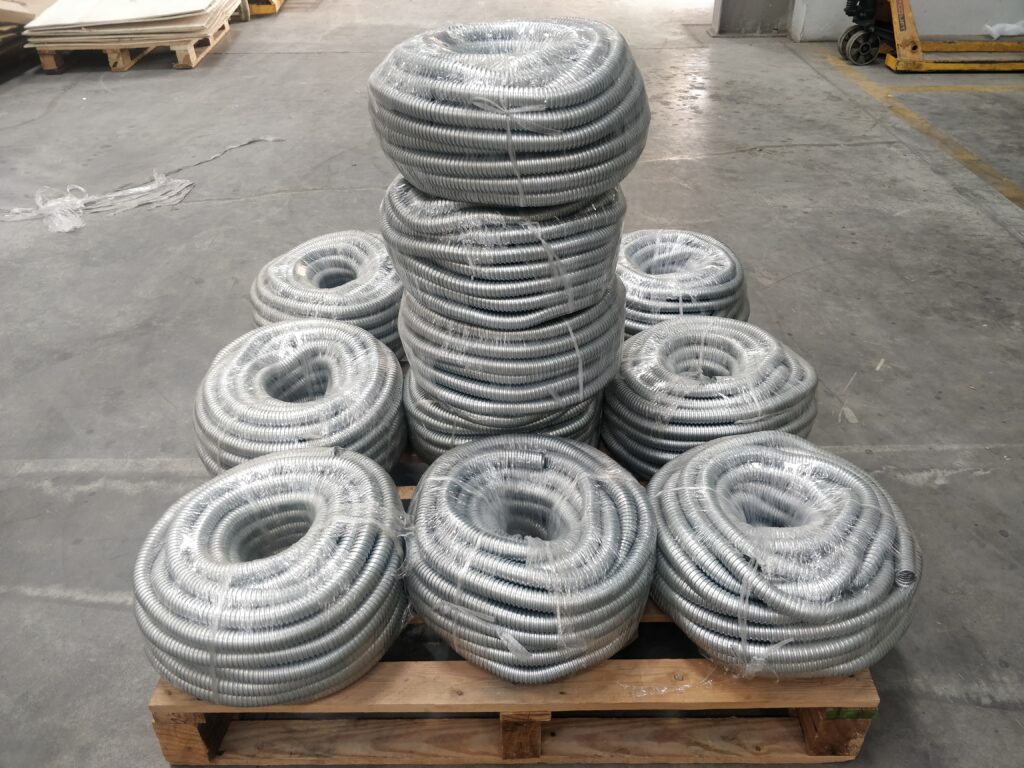

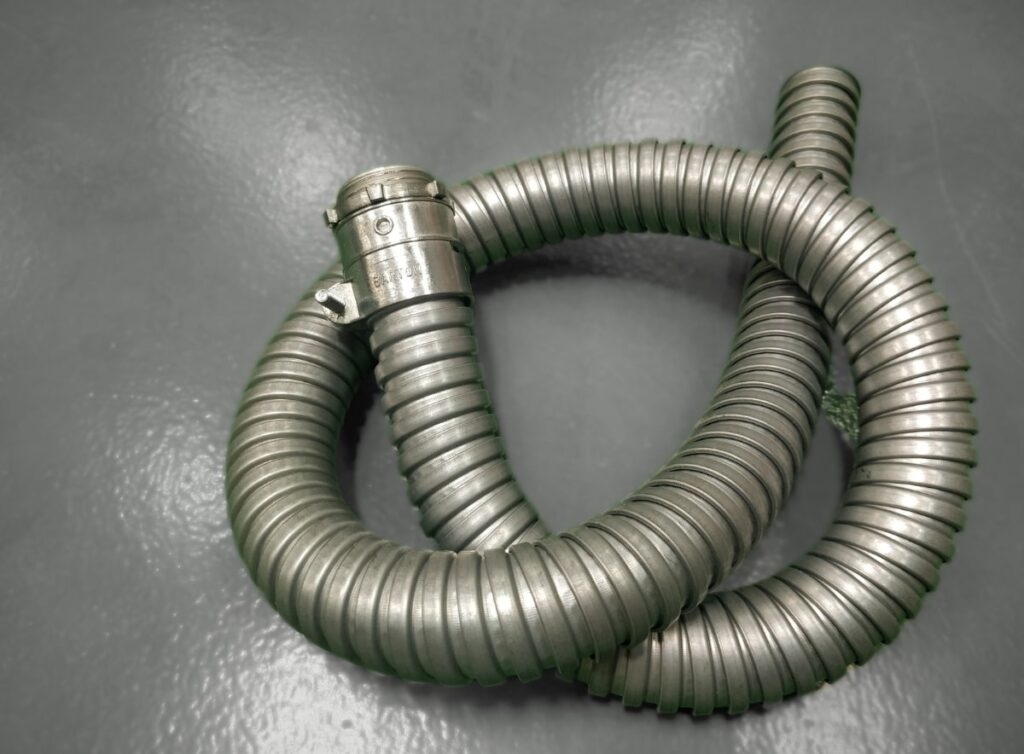

Flexible Metal Conduit
- Highly flexible.
- High mechanical strength.
- Inherent low fire hazard.
- Operating temperature: -100 C to +300 C.
- IP rating with standard fittings: IP40.
| FLEXIBLE METAL CONDUIT - STEEL (DIMENSIONS) | |||||||
|---|---|---|---|---|---|---|---|
|
Part Number
|
Trade
Size (Inch)
|
External
Diameter (mm) |
Internal
Diameter (mm) |
Min. Bend
Radius (mm)
|
Length of
Conduit (M/Roll)
|
||
|
BEFC05030 |
1/2 |
17 |
13
|
43 |
30 |
||
|
BEFC07530 |
3/4 |
23 |
19 |
50 |
30 |
||
|
BEFC10030 |
1 |
29 |
26.8 |
57 |
30 |
||
|
BEFC12515 |
11/4 |
36 |
32 |
70 |
15 |
||
|
BEFC15015 |
11/2 |
43 |
38 |
80 |
15 |
||
|
BEFC20015 |
2 |
55 |
50 |
95 |
15 |
||

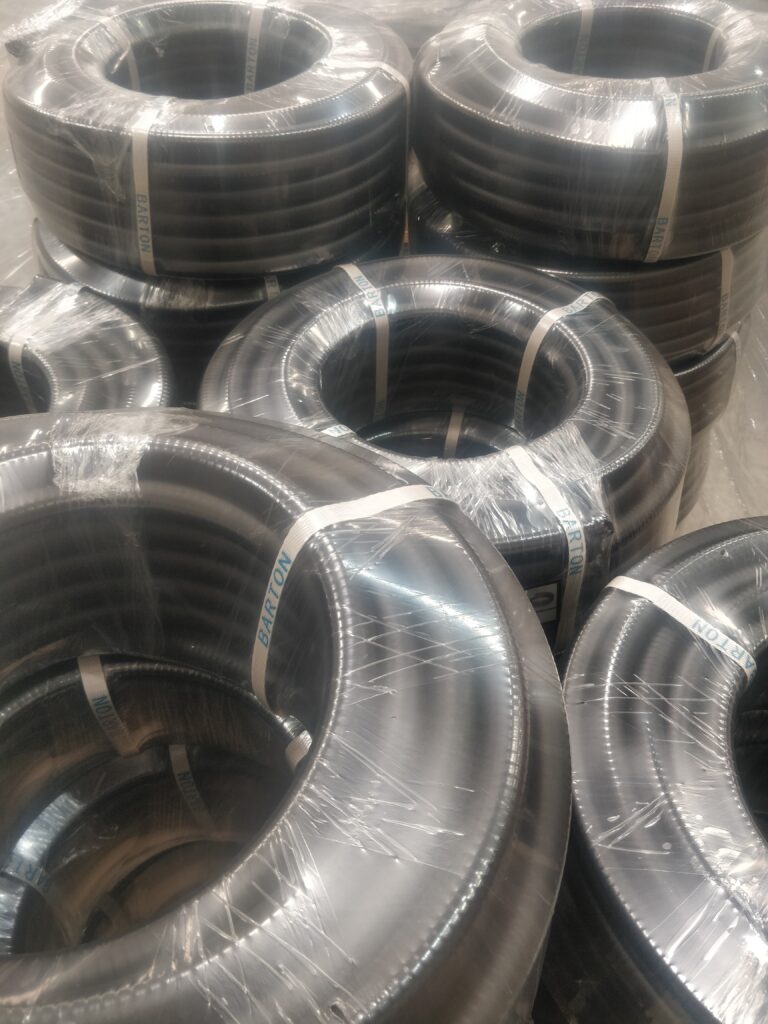

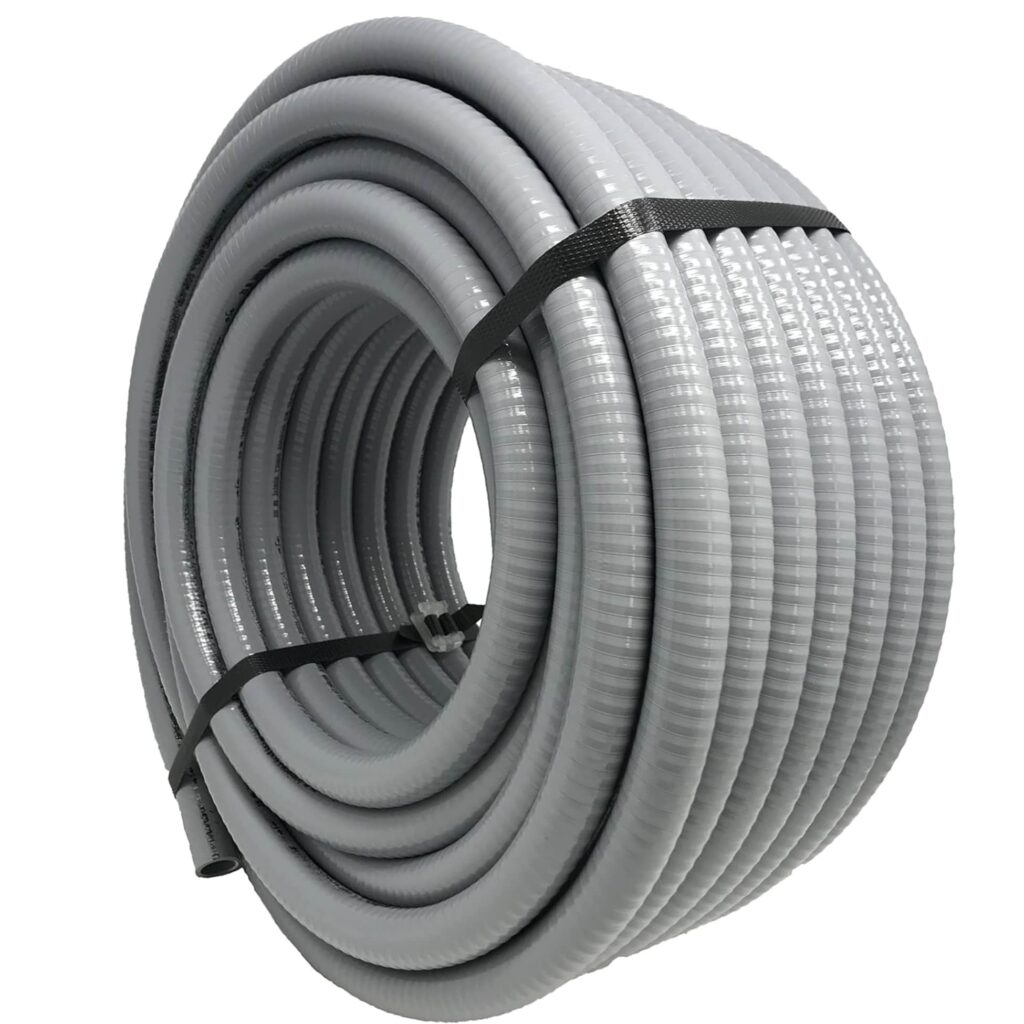

LIQUID TIGHT FLEXIBLE CONDUIT
- High tensile strength.
- Good mechanical protection.
- Corrosion resistance.
- Smooth interior for easy wire pulling.
- Operating temperature: -20 C to +105 C.
- IP rating with standard fittings: IP66
- Excellent resistance to corrosion.
| LIQUID TIGHT FLEXIBLE CONDUIT – STEEL (DIMENSIONS) | |||||||
|---|---|---|---|---|---|---|---|
|
Part Number
|
Trade Size (Inch)
|
External Diameter (mm) |
Internal Diameter (mm) |
Min. Bend Radius (mm)
|
Length of Conduit (M/Roll)
|
||
|
Min |
Max |
Min |
Max |
||||
|
BELT05030 |
1/2 |
20.8 |
21.3 |
15.8 |
16.3 |
65 |
30 |
|
BELT07530 |
3/4 |
26.2 |
26.7 |
20.7 |
21.2
|
75
|
30 |
|
BELT10030 |
1 |
32.7 |
33.4 |
26.4 |
26.8 |
100 |
30 |
|
BELT12530 |
11/4 |
41.4 |
42.2 |
35.5 |
35.4 |
120 |
15 |
|
BELT15030 |
11/2 |
47.4 |
48.3 |
40.1 |
40.6 |
140 |
15 |
|
BELT20030 |
2 |
59.4 |
60.3 |
51.3 |
51.9 |
180 |
15 |
Large diameters are available on request.
