EMT (Electrical Metallic Tube) CONDUIT
EMT (Electrical Metallic Tube) CONDUIT
Barton EMT conduit is the most cost-effective premium quality conduit solution, where light weight and maximum wire carrying capacity are important factors in the electrical cable protection system.
Barton EMT is manufactured in accordance with UL 797 and ANSI C80.3 on modern and efficient tube rolling mills to consistently high standards.

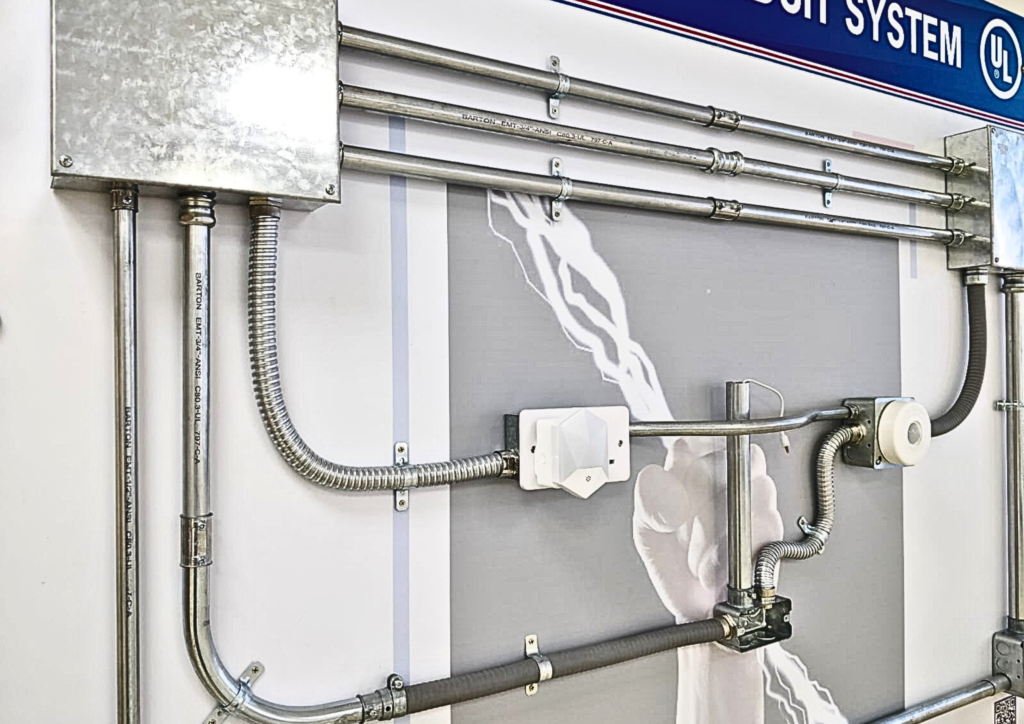

Barton EMT conduit is easily installed, modified, and repurposed. It provides excellent strength to weight and good resistance against corrosion when correctly installed.
Barton products are backed by a fast, reliable and comprehensive local service.
Sizes: Nominal trade sizes are from ½” to 4”
Length: EMT conduit is produced in 3.05m (10 ft) traditional standard lengths.
Features:
- Thin walled unthreaded steel conduit.
- Manufactured from galvanised high grade steel.
- Supplied in 3.05m (10 ft) lengths without couplers/connectors.

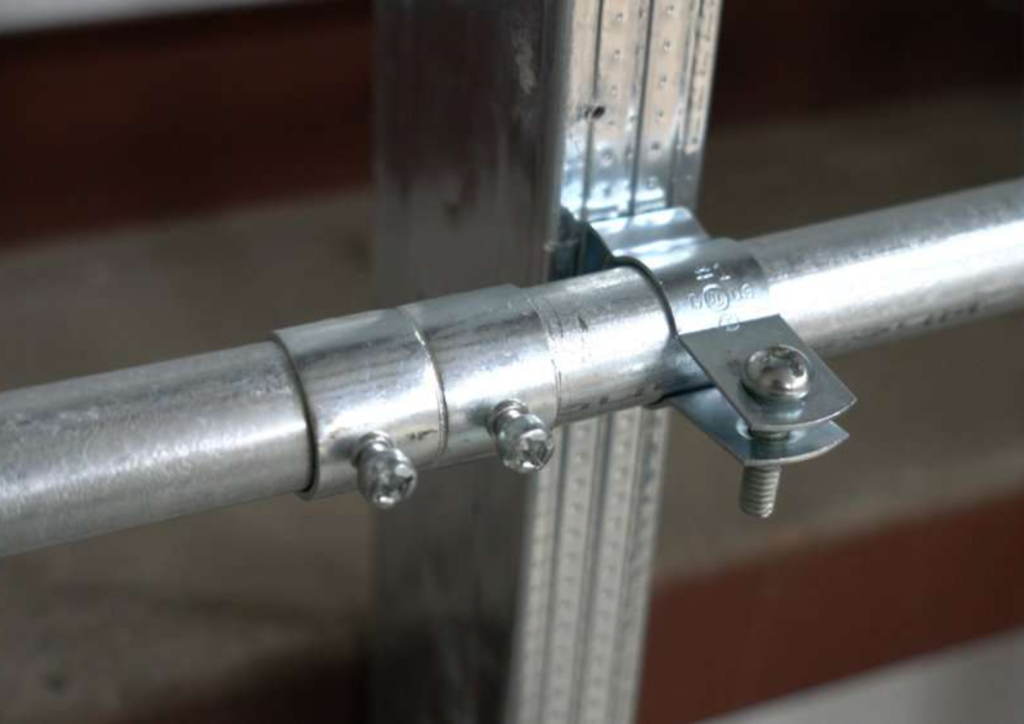

- Connected using EMT fittings.
- American National Standard Institute ANSI C80.3.
- Underwriters Laboratory UL797
- EMT – Electrical Metallic Tubing.
- High capacity, lightweight steel conduit for optimal protection.
- Excellent resistance to extreme temperatures and environments.
- Does not burn or produce harmful gases.
- Smooth interior for easy wire pulling
EMT (Electrical Metallic Tube) CONDUIT
| BARTON Electrical Metallic Tubing - Steel (dimensions) | |||||||
|---|---|---|---|---|---|---|---|
|
Nominal Trade Size |
Part Number |
Length |
Nominal Outside Diameter |
Nominal Wall Thickness |
|||
|
Inch |
MM |
Inch |
MM |
Inch |
MM |
||
|
1/2 |
16 |
BEMT050 |
3.05m (10 ft) |
0.706 |
17.93 |
0.042 |
1.07 |
|
3/4 |
21 |
BEMT075 |
0.922 |
23.42 |
0.049 |
1.24 |
|
|
1 |
27 |
BEMT100 |
1.163 |
29.54 |
0.057 |
1.45 |
|
|
11/4 |
35 |
BEMT125 |
1.51 |
38.35 |
0.065 |
1.65 |
|
|
11/2 |
41 |
BEMT150 |
1.74 |
44.2 |
0.065 |
1.65 |
|
|
2 |
53 |
BEMT200 |
2.197 |
55.8 |
0.065 |
1.65 |
|
|
21/2 |
63 |
BEMT250 |
2.875 |
73.03 |
2.731 |
69.37 |
|
|
3 |
78 |
BEMT300 |
3.5 |
88.9 |
3.356 |
85.24 |
|
|
31/2 |
91 |
BEMT350 |
4 |
101.6 |
3.834 |
97.38 |
|
|
4 |
103 |
BEMT400 |
4.5 |
114.3 |
4.334 |
110.08 |
|
Large diameters are available on request.
