british STANDARD
RIGID GI CONDUIT
RIGID GI CONDUIT (Class 4 rigid steel conduit)
Barton cable management products are designed, manufactured and proven to be capable of withstanding harsh environmental conditions, which include extremes of heat, humidity, salinity and airborne dust particles.
Barton has a 40+ year proven track record of successful installations in the Middle East.
GALVANISED CONDUIT
Barton Class 4 conduit is Hot Dipped Galvanised inside and out, meeting the highest level of resistance to corrosion.
Manufactured in accordance with BS 4568, BS 61386, or BS 31.
SIZE RANGE

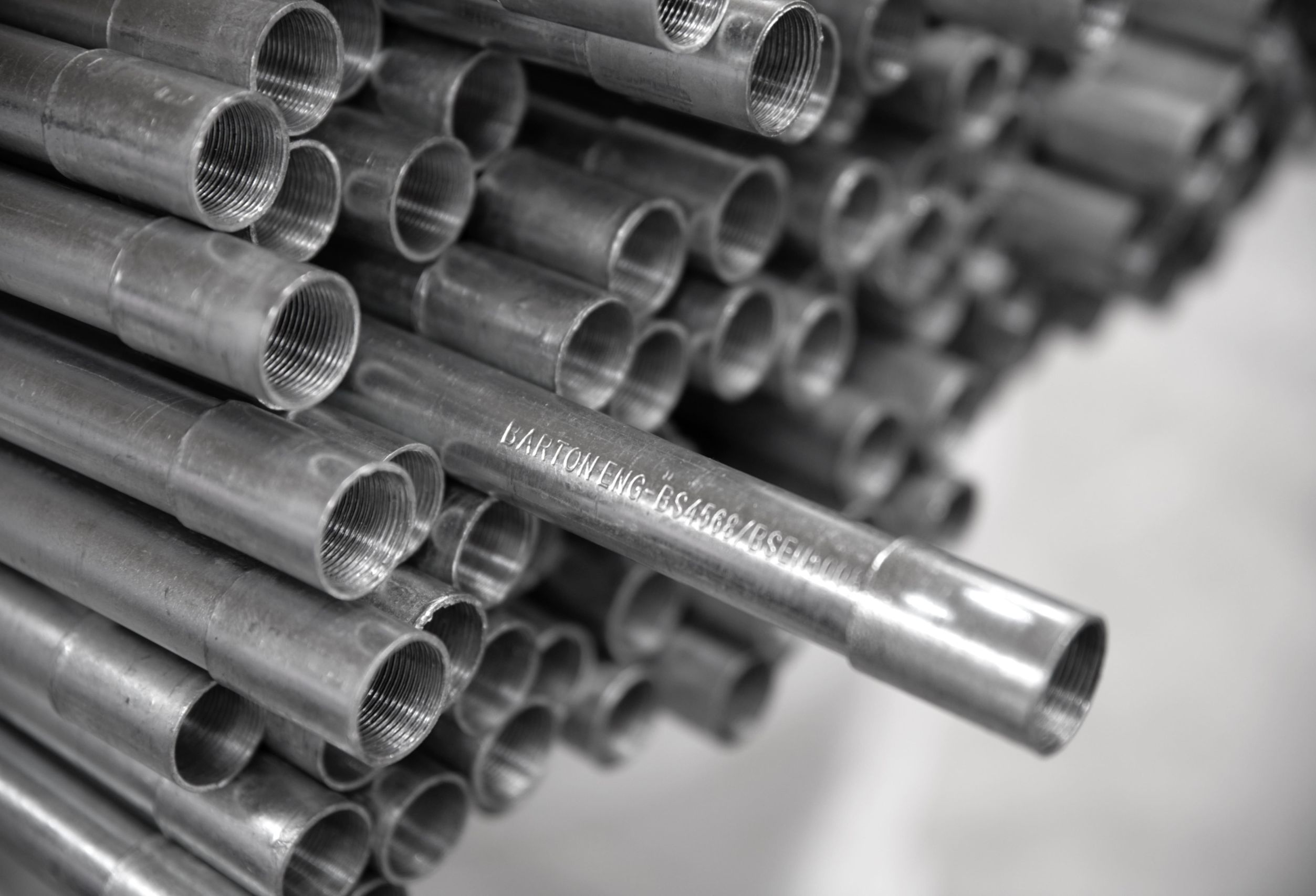

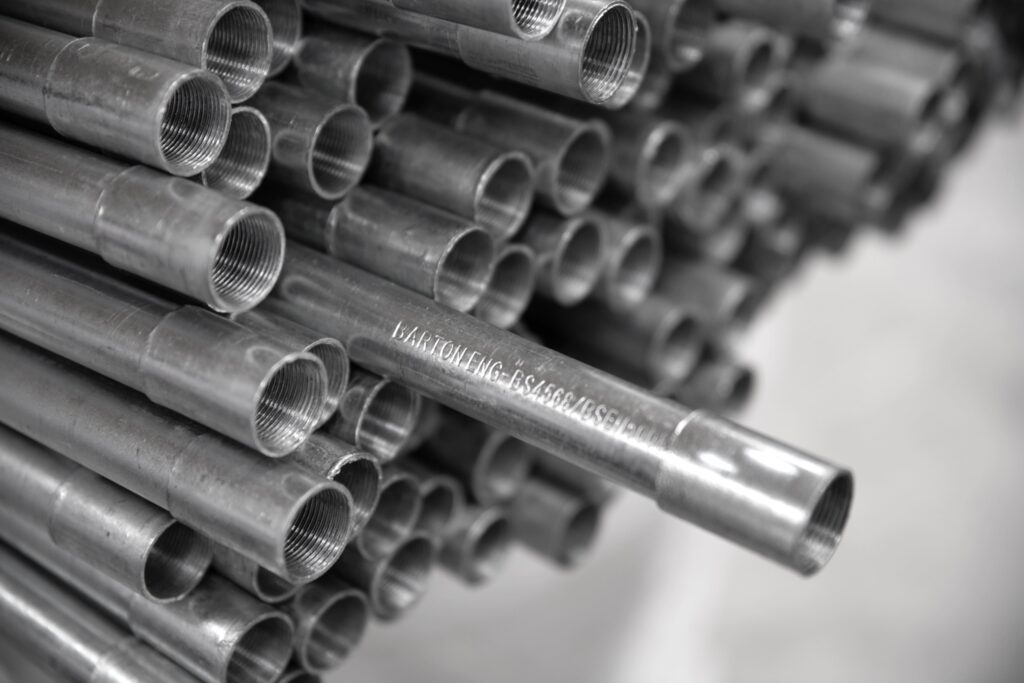

The range comprises 20, 25 and 32mm, 1½” and 2” diameters. The conduit is externally threaded at both ends and supplied with a coupler assembled at one end. Removable protection end caps are used to prevent thread damage during transportation.
British Standard Rigid GI Conduit
| External Diameter | No. of lengths per bundle | No. of bundles per master bundle | Meters per master bundle | Approx. weight per master bundle (kg) | ||
|---|---|---|---|---|---|---|
|
BS 4568/BS EN50086/BS EN IEC 61386 Class 4 finish 3.75 meter lengths |
20mm |
8 |
50 |
1500 |
1000 |
|
|
BS 31 class 4 finish Hot dipped galvanised 3.75 meter lengths |
1 ½” |
4 |
25 |
375 |
700 |
|
STRENGTH
Barton conduit conforms to BS 4568, BS 61386, or BS 31. Barton steel conduit meets the maximum strength classification in the British standard and can be formed on site using standard installation equipment. The internal weld bead and galvanising of the bore are strictly controlled to ensure electrical cables can be pulled through the conduit smoothly, without snagging.
TRACEABILITY
Barton conduit is coded with a unique batch code providing full traceability. Each length can be tracked back to the date of manufacture and the mill certificate of the parent steel used in production.
HOT DIPPED GALVANISED TO CLASS 4
Barton Class 4 conduit is hot dipped galvanised after manufacture. The products are coated with zinc by immersing them in a molten zinc bath. Trace elements of alloying metals are included to improve fluidity and reduce dross. Newly hot dipped galvanised products have a bright silver appearance, which naturally becomes dull grey when exposed to the atmosphere.
Barton Class 4 conduit is routinely inspected for corrosion, strength and bending and is independently tested by an approved laboratory.

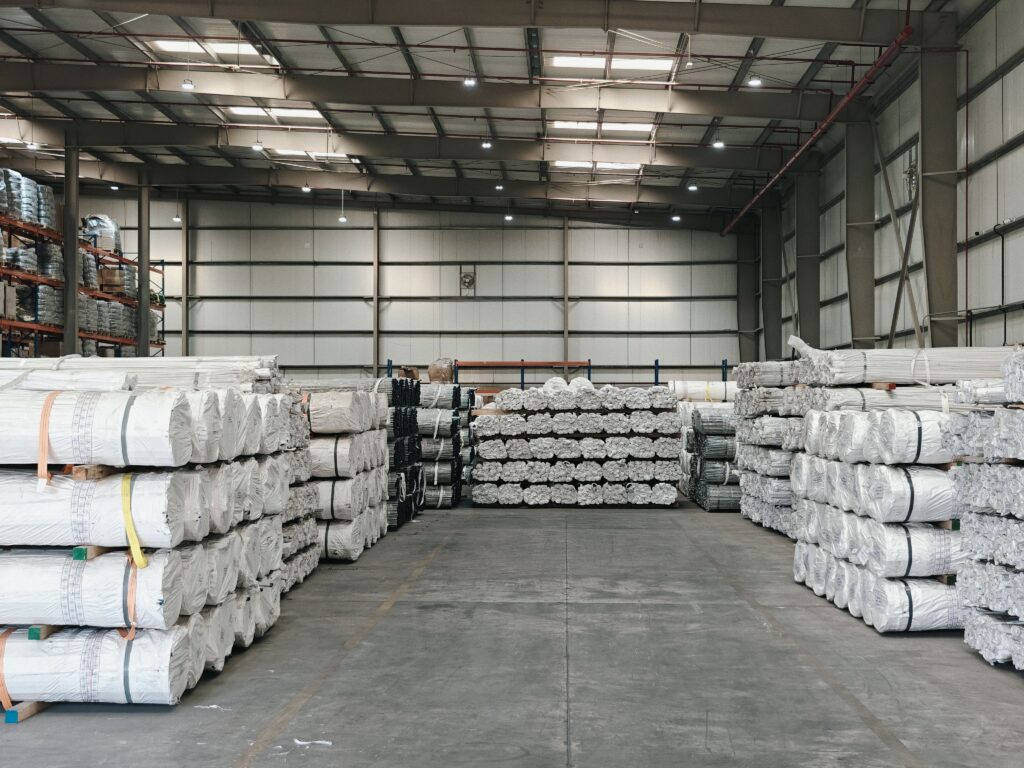

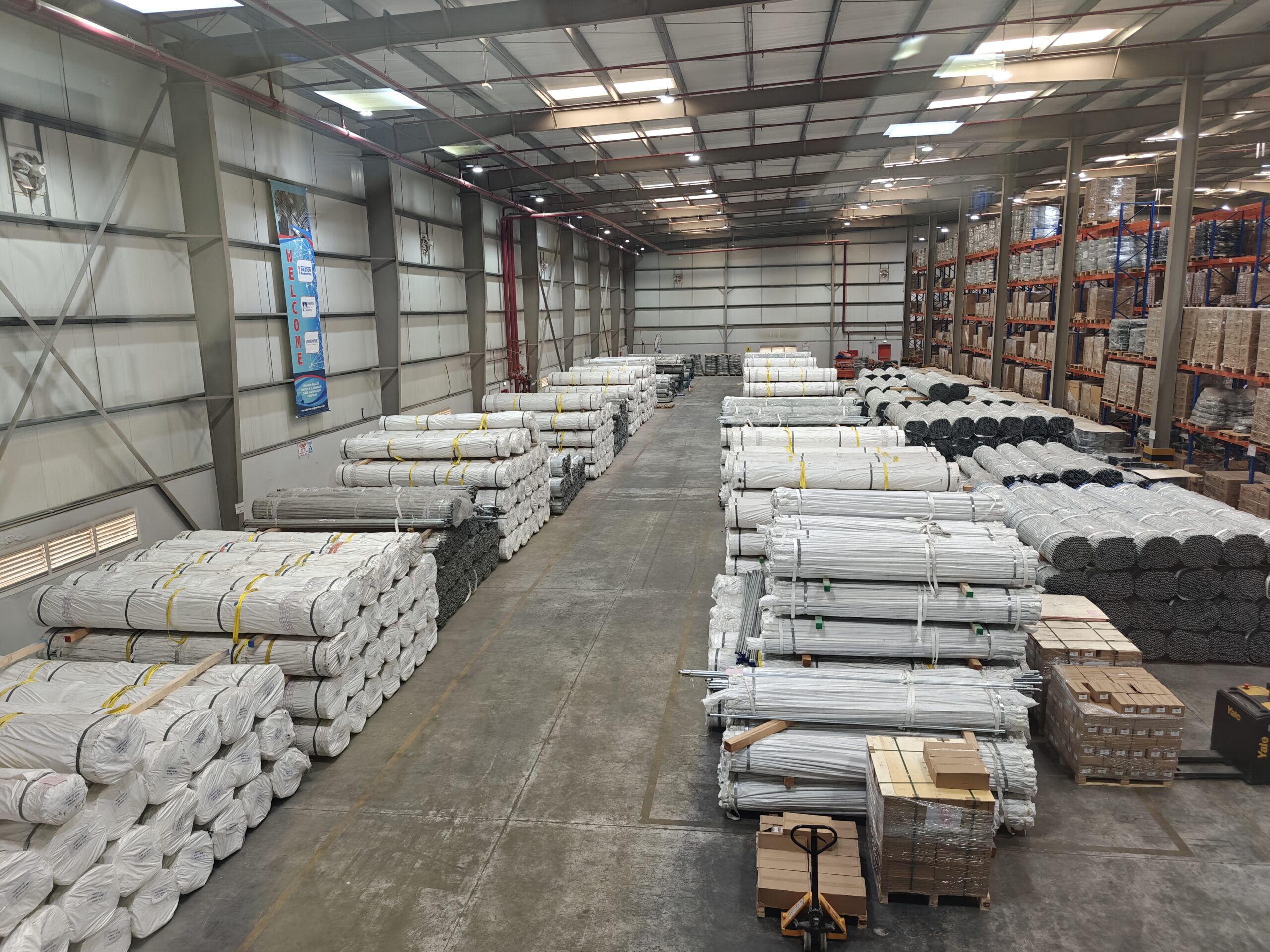

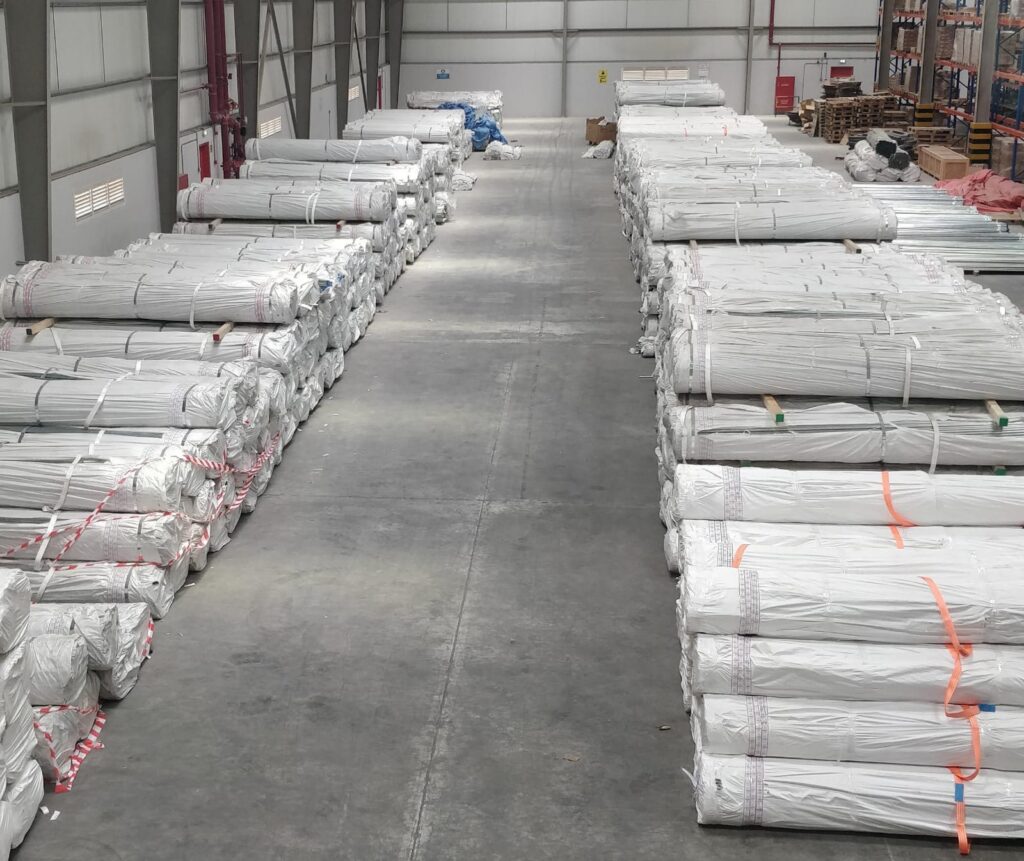

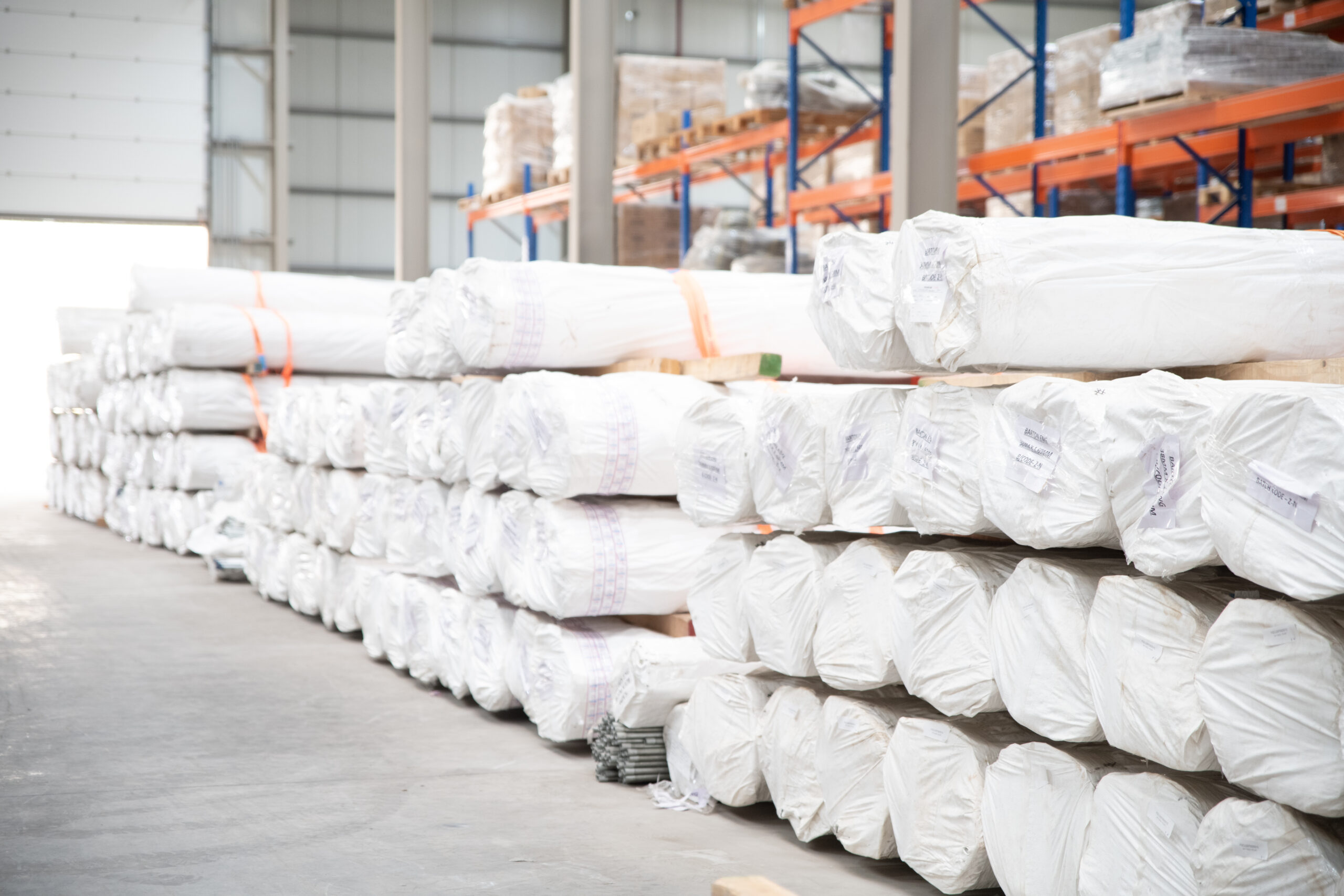

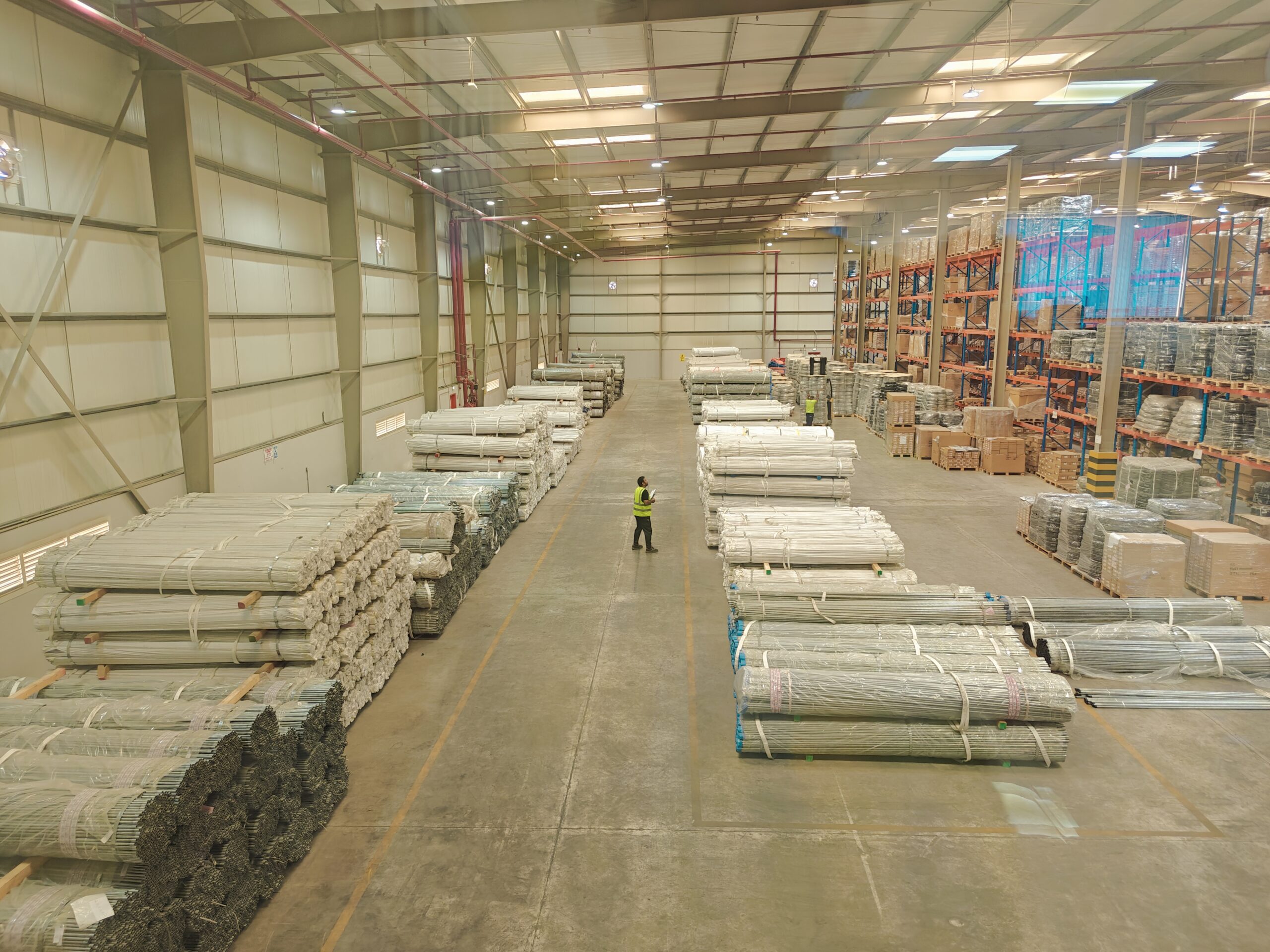

HANDLING AND STORAGE
Galvanised conduit should be stored in dry conditions with good air circulation to prevent wet stain storage (“white rust”). However, should this occur it can be easily removed and does not affect corrosion resistance.

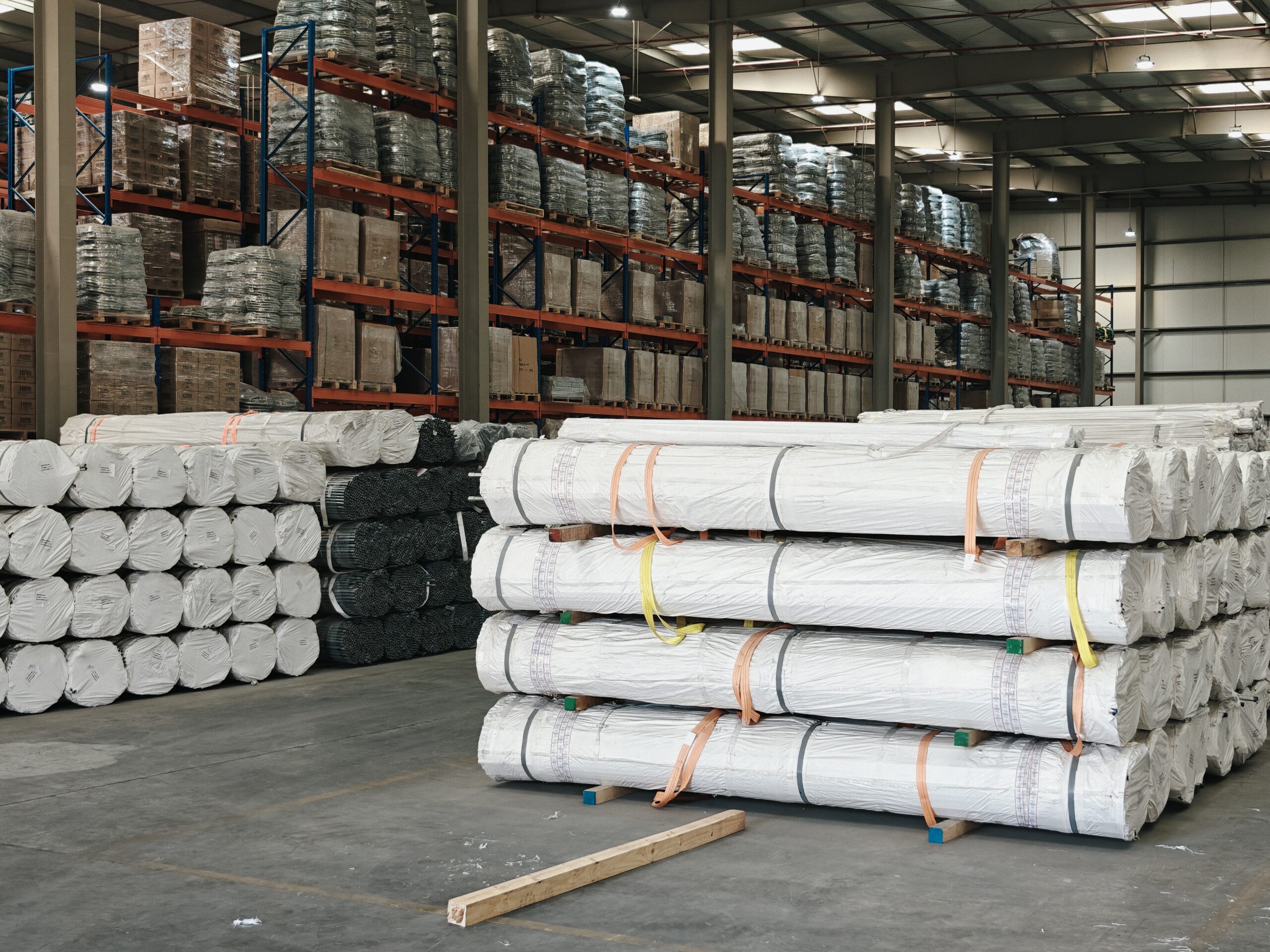

Binding materials used to make up bundles of conduit are not intended to be used when lifting this product, which should be handled only with approved slings.
