Flexible Conduit
Flexible Conduit

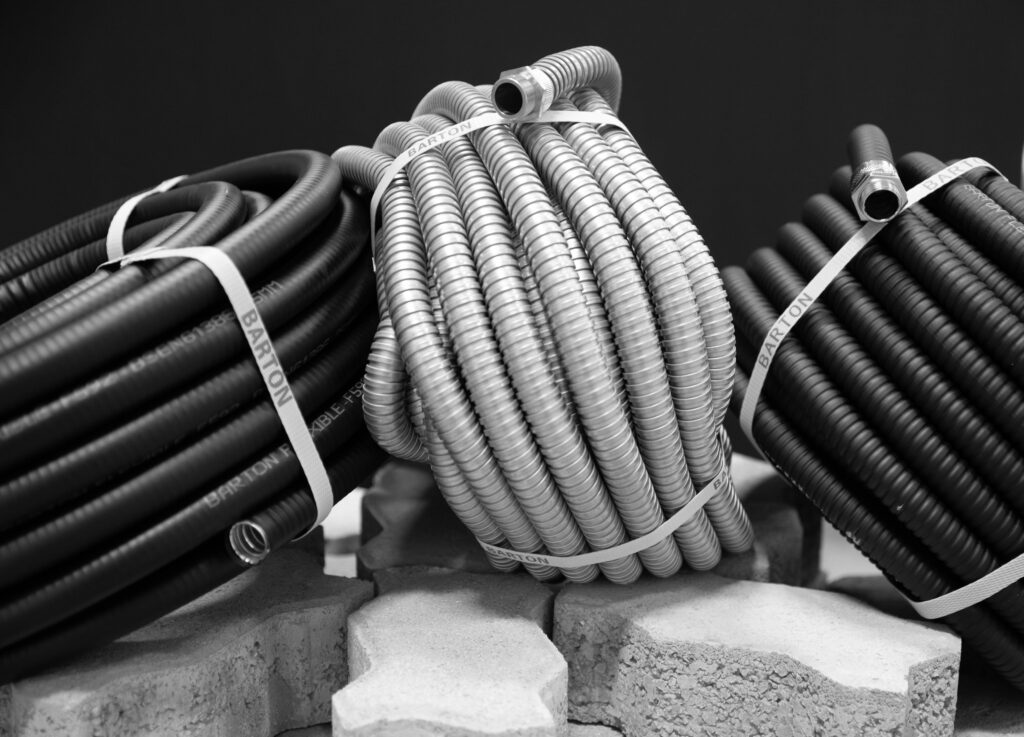

Barton flexible steel conduit systems shield power, lighting and data cable from vibrations and movement, corrosion and water ingress. The galvanised steel core is manufactured in accordance with BS EN IEC 61386-23 to ensure the bore is smooth for ease of cable pulling.
The systems are available in steel, halogen free, low smoke, low toxicity PVC and liquid tight coverings. Barton flexible steel conduit systems perform in a wide variety of harsh environmental conditions including extremes of temperature, dust, salinity and UV.
Flexible conduit is used in many applications including Oil and Gas, Marine, Aviation, Healthcare, Food Hygiene, Commercial Contracting, Security, Data, Machinery and Transport.
Full break down of range including parts and sizing are below:
| Part Code | 20mm flexible conduit | 25mm flexible conduit | 32mm flexible conduit | 40mm flexible conduit | 50mm flexible conduit | 63mm flexible conduit |
|---|---|---|---|---|---|---|
|
F562 |
|
|
|
|
|
|
|
F582 |
|
|
|
|
|
|
|
F583 |
|
|
|
|
|
|
|
F592 |
|
|
|
|
|
|
|
F593 |
|
|
|
|
|
|
|
Roll Size |
30m |
30m |
20m |
20m |
20m |
10m |

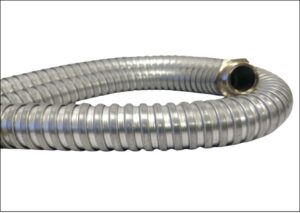

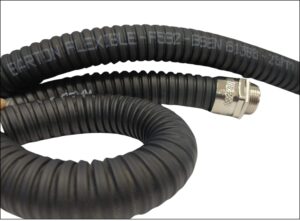

| BARE METALLIC FLEXIBLE CONDUIT | Low smoke and fume flexible conduit | Low smoke zero halogen flexible conduit | Liquid tight flexible conduit | Low smoke zero halogen liquid tight flexible conduit |
|---|---|---|---|---|
|
|
|
|
|
|
|
F562GLVOD |

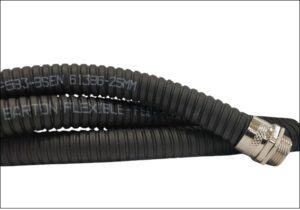

F582LSFOD |
F583LSZHOD |

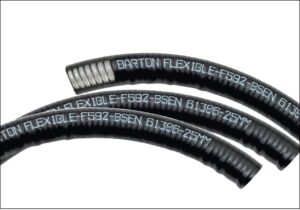

F592LTOD |

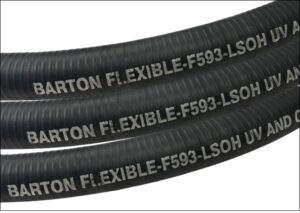

F593LSLTOD |
|
No hazardous sharp edges or burrs and smooth inside for easier wire pulling
Will not damage conductors General purpose application, IP 40 Rating conforms to BS EN IEC 61386-23 For use in dry and accessible locations |
No hazardous sharp edges or burrs
Smooth inside for easier wire pulling Conforms to BS EN IEC 61386-23 Corrosion, abrasion, oil and water resistant Intended to protect wiring that requires water-tight protection, but also subject to repeated bending |
No hazardous sharp edges or burrs
Smooth inside for easier wire pulling and conforms to BS EN IEC 61386-23 Suitable when toxic gases cannot be tolerated, such as transit and transportation systems Corrosion, abrasion, oil and water resistant |
No hazardous sharp edges or burrs
Smooth inside for easier wire pulling and conforms to BS EN IEC 61386-23 Protection for wiring circuits located in extremely wet or damp areas General purpose application, IP 67 rating Oil and chemical resistant |
No hazardous sharp edges or burrs
Smooth inside for easier wire pulling Conforms to BS EN IEC 61386-23 General purpose application, IP 67 rating Oil and chemical resistant |

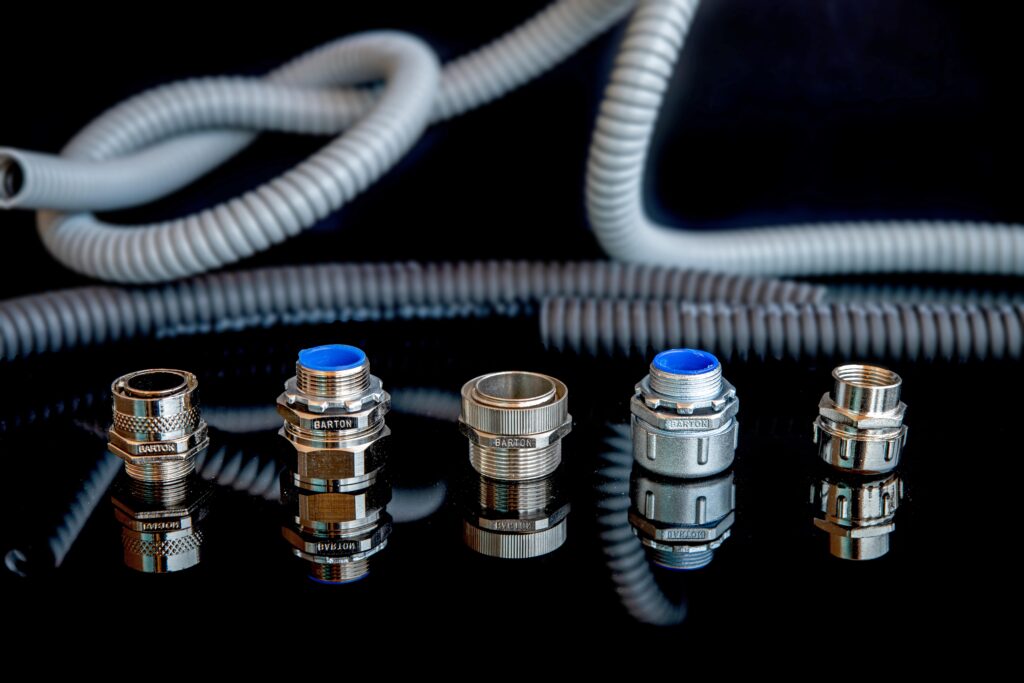

Flexible Conduit fittings
Full range of flexible conduit fittings (Zinc/Brass) are available :
Part Code:
Description:
Material:
Finish:
Product Features:

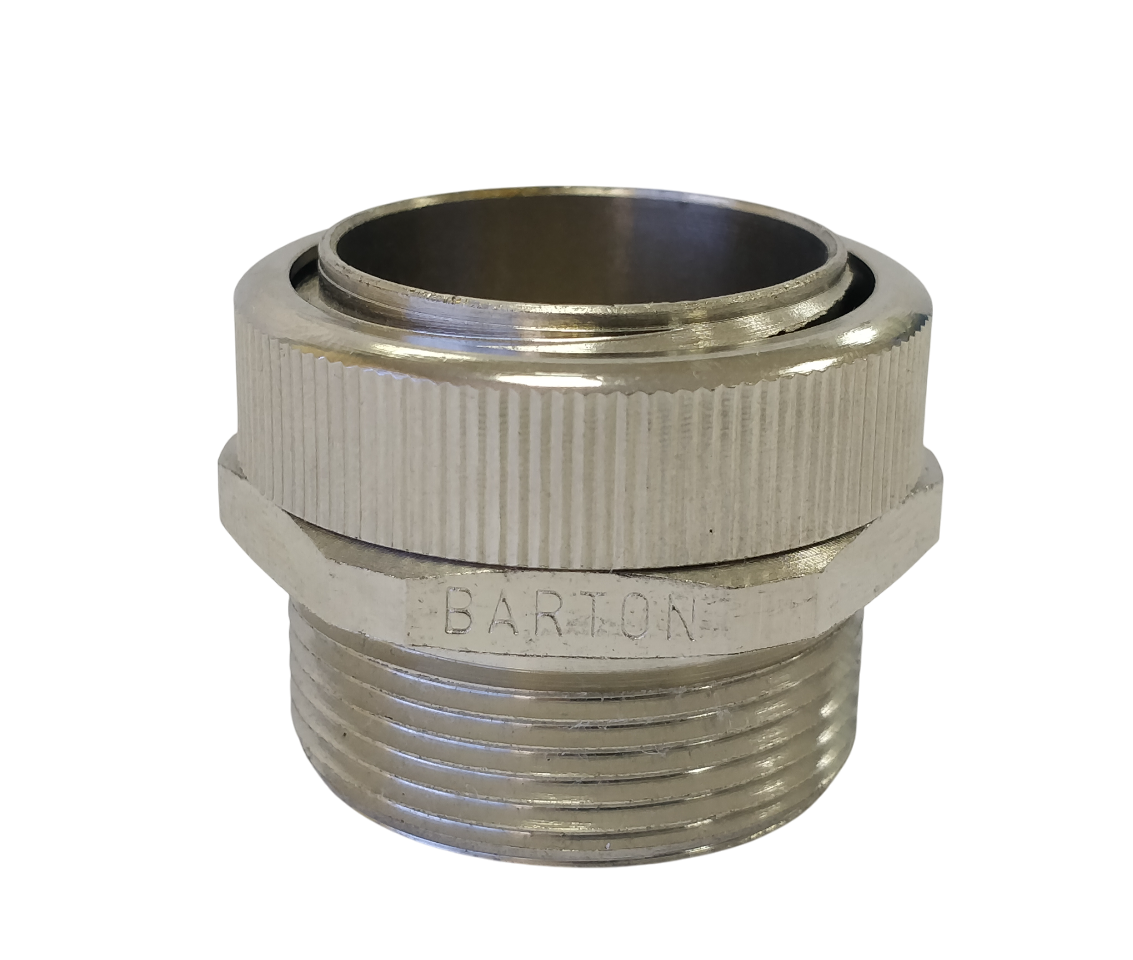

F543ZNCNOD

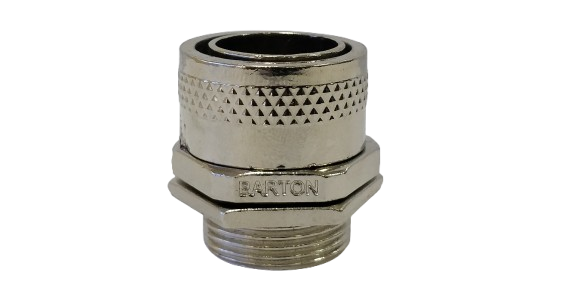

Conduit fittings for Bare, LSF and LSZH flexible conduit – Male
Zinc
Nickel Plated
No hazardous sharp edges or burrs
Smooth inside for easier wire pulling
Conforms to BS EN IEC 61386-23
Pre-packaged with a locknut
General purpose application, IP 55 rating
Corrosion, abrasion, oil and water resistant
Part Code:
Description:
Material:
Finish:
F543BRSNOD
Conduit fittings for Bare, LSF and LSZH flexible conduit – Male
Brass
Nickel Plated
No hazardous sharp edges or burrs
Smooth inside for easier wire pulling
Conforms to BS EN IEC 61386-23
General purpose application, IP 55 rating
Corrosion, abrasion, oil and water resistant
Locknut available optionally
Part Code:
Description:
Material:
Finish:
F543FZNOD

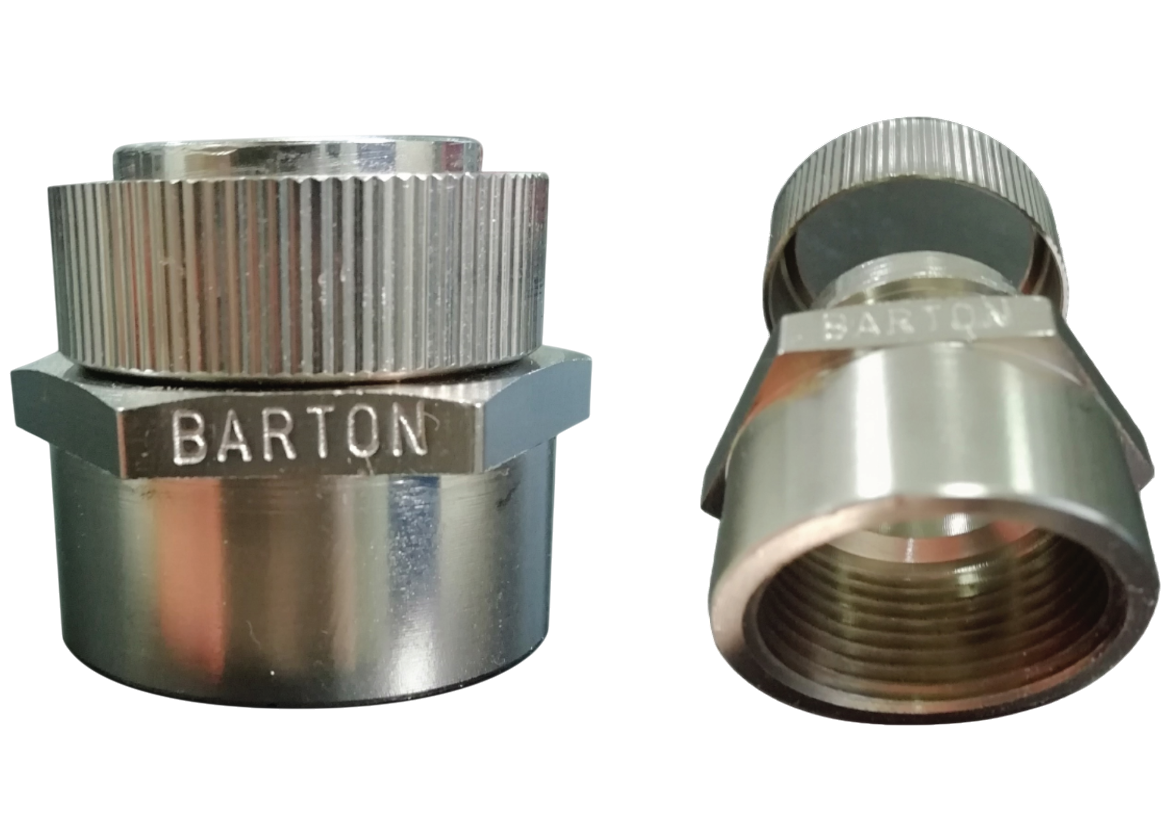

Conduit fittings for Bare, LSF and LSZH flexible conduit – Female
Zinc
Nickel Plated
No hazardous sharp edges or burrs
Smooth inside for easier wire pulling
Conforms to BS EN IEC 61386-23
General purpose application, IP 55 rating
Corrosion, abrasion, oil and water resistant
Part Code:
Description:
Material:
Finish:
F543FNOD
Conduit fittings for Bare, LSF and LSZH flexible conduit – Female
Brass
Nickel Plated
No hazardous sharp edges or burrs
Smooth inside for easier wire pulling
Conforms to BS EN IEC 61386-23
General purpose application, IP 55 rating
Corrosion, abrasion, oil and water resistant
Part Code:
Description:
Material:
Finish:

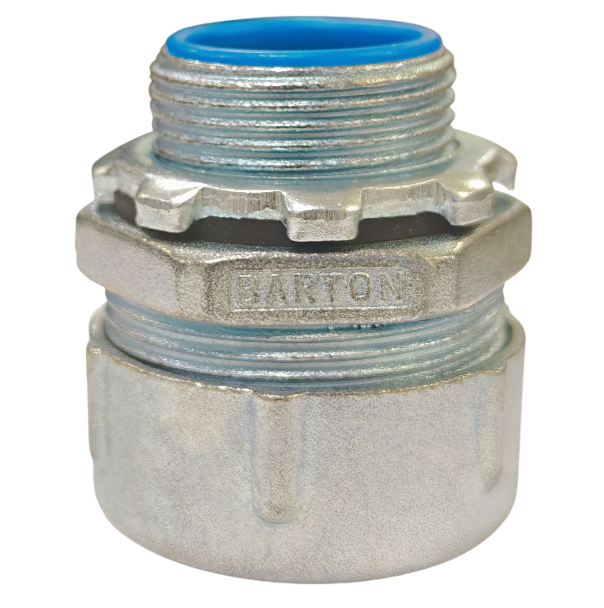

F542ZNCLTOD

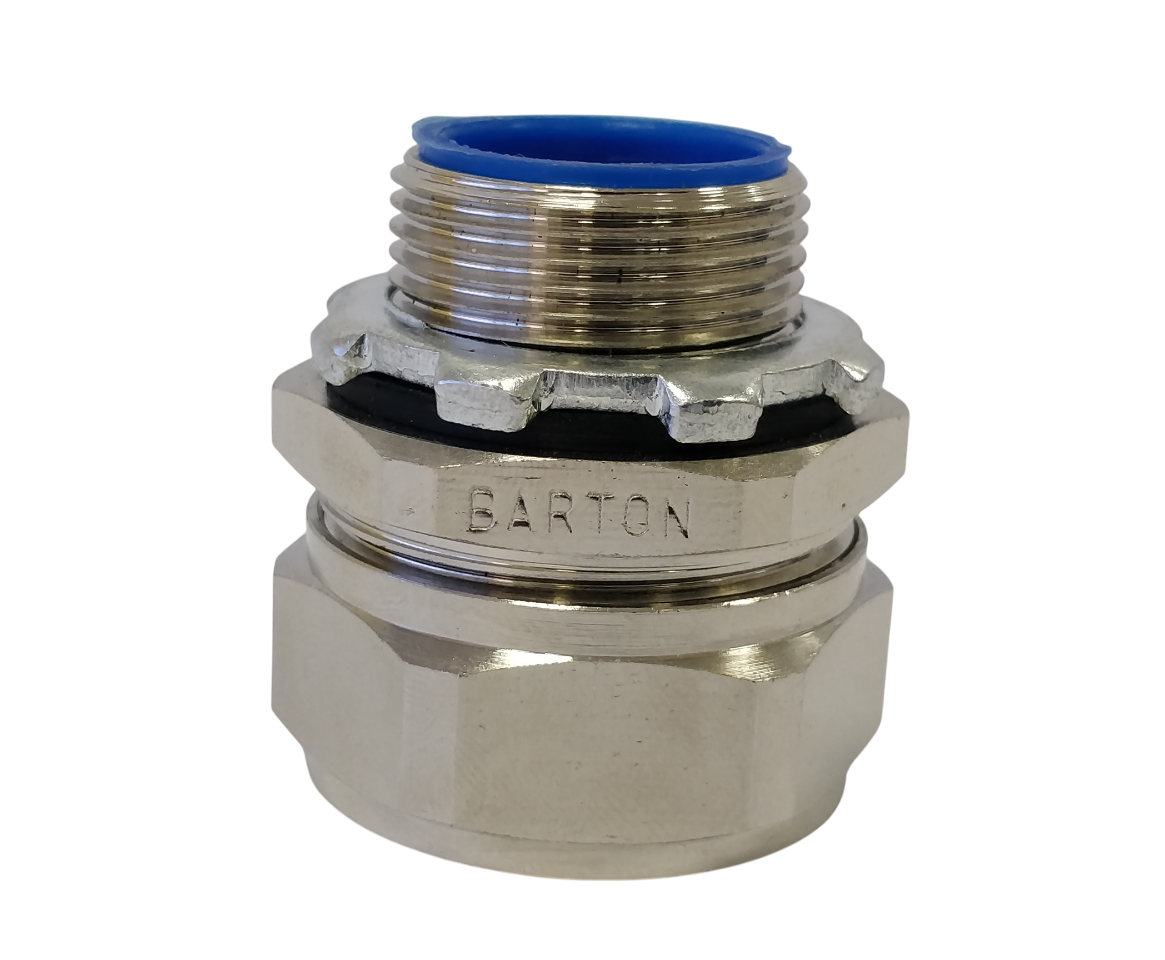

Liquid Tight flexible conduit fittings
Zinc
Zinc Die Cast
No hazardous sharp edges or burrs
Smooth inside for easier wire pulling
Conforms to BS EN IEC 61386-23
General purpose application, IP 66 rating
Oil and chemical resistant
Part Code:
Description:
Material:
Finish:
F542NLTOD
Liquid Tight flexible conduit fittings
Brass
Nickel Plated
No hazardous sharp edges or burrs
Smooth inside for easier wire pulling
Conforms to BS EN IEC 61386-23
General purpose application, IP 66 rating
Oil and chemical resistant
