BARTON COMBI UL/BS STANDARD CONDUIT FORMING MACHINE
Barton combi conduit forming Machine for BS and UL standard conduit system

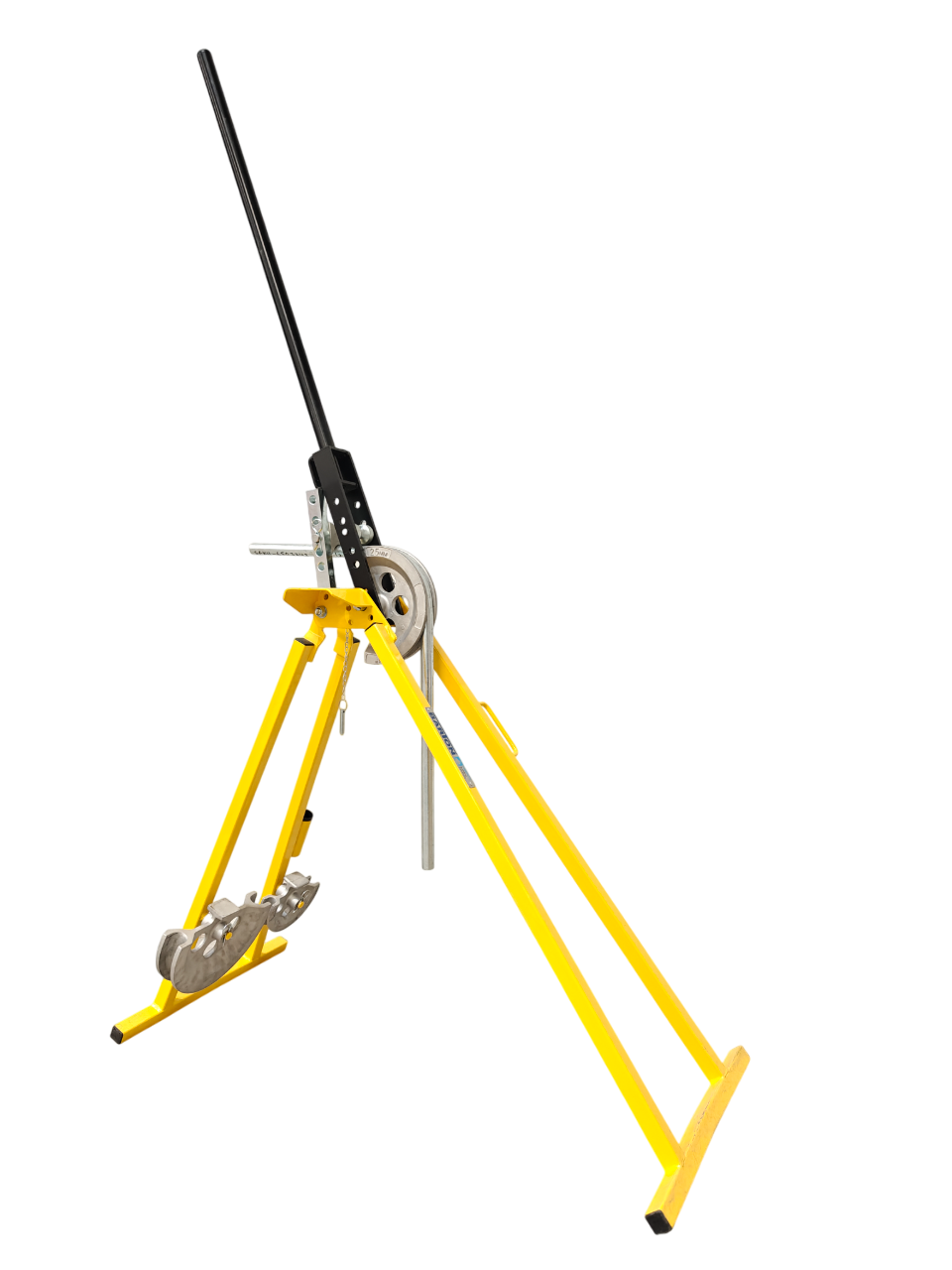

Barton Combi UL/BS Standard Conduit Forming Machine features a compact, robust design built to withstand harsh construction site conditions.
The precision pressure die cast aluminium former is equipped with anti-slip grooves to ensure precise and accurate bends. The machine guarantees even pressure distribution during the bending process, avoiding any stress points.
Effortless bending is achievable even by semi-experienced operators, reducing manual force and minimising physical stress and operator fatigue.
It is the quickest, safest, and easiest combi conduit forming machine, delivering guaranteed results with every use.
| 1 | Pipe vice | |
|---|---|---|
|
2 |
Frame (with label) |
|
|
3 |
Bending and extension lever |
|
|
4 |
Grooved roller |
|
|
5 |
Grooved roller pin and clip |
|
|
6 |
Centre pin and head |
|
|
7 |
Pipe vice jaws |
|
|
8 |
Stop bar tube |
|
|
9 |
Spare lock pin |
|
|
10 |
Stop bar |
|
|
11 |
Tube stop clip |
|
|
12 |
Tube stop |
|
| Description | BS 20/25mm | ¾" EMT | 1" EMT | ||
|---|---|---|---|---|---|
|
Kit #1 |
BTEMTCB |
|
Common parts |
|
|
|

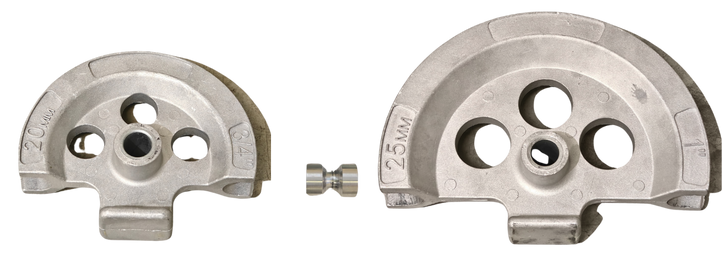

Kit #2 |
|
Grooved roller A |
|
|
|
|

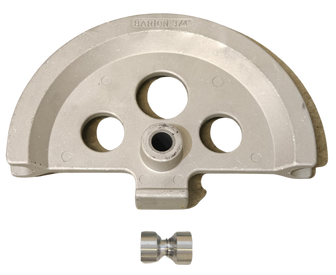

Kit #3 |
BTEMTFR100 |
|
Grooved roller A |
|
|
|

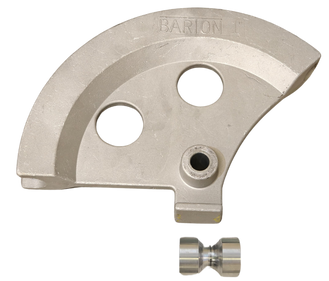

Kit #4 |
BTEMTFR100 |
|
|
Grooved roller B |
|
ORDERING INFORMATION:
- Combi conduit forming machine for 20/25mm BS conduits: Kit #1 + Kit #2.
- Combi conduit forming machine for ¾" EMT conduit: Kit #1 + Kit #3,
- Kit #3 and Kit #4 is separately available on request.
- Combi conduit forming machine for 1" EMT conduit: Kit #1 + Kit #4
